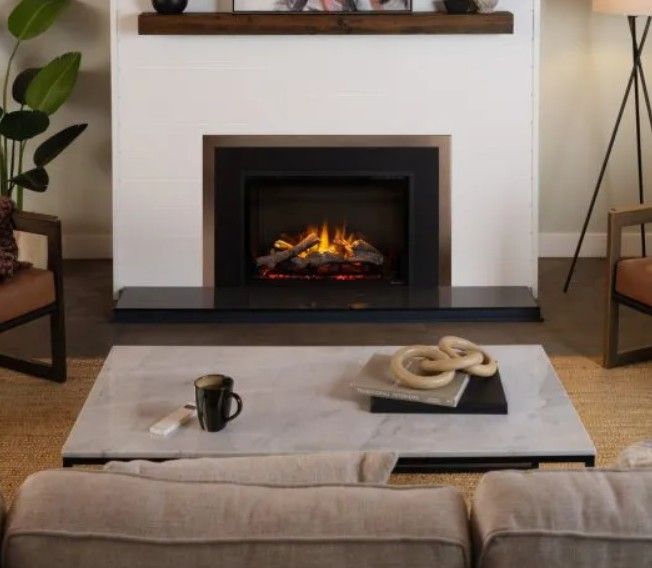

Regency Ei33 Electric Fireplace/In Built

• Flame Viewing Area: 33″ W x 23″ H
• Unit includes: Thermostatic Remote Control. Can be used with or without heat.
• 3 sided (35-1/16″W x 24-7/8″H) & 4 sided (35-1/16″W x 25-13/16″H) finishing trim (bottom trim is removed to create a 3 sided). Oak Log set with grate & ember bed media.
• 5,000 BTU, 1400W, 120V plug or hardwire or 9,500 BTU, 2800W, 240V hardwire only.
• 3 sided Faceplate 910mm x 590 mm $292
• 4 sided Faceplate 910mm x 660 mm $386

Specifications

FACEPLATE	A – WIDTH	B – HEIGHT	C – DEPTH	D – BOTTOM HEIGHT
3-Sided Finishing Trim*	35-1/16″	24-7/8″	1/8″	—
4-Sided Finishing Trim**	35-1/16″	25-13/16″	1/8″	13/16″
3-Sided Flush Faceplate	46-1/8″	30-13/16″	1/16″	—
4-Sided Flush Faceplate	46-1/8″	37-1/16″	1/16″	6-1/2″
Oversized Backing Plate	50-1/4″	33″	1/16″	—

* Bottom trim from the 4-sided finishing trim is removed to create a 3-sided.
** Included with appliance.

Min. Fireplace Opening

A – HEIGHT	B – DEPTH	C – WIDTH (REAR)	D – WIDTH (FRONT)
20-1/8″	9-3/4″	23-5/16″	28-7/16″

*** Using a Flush Faceplate & Traditional Surround.
NOTE: Minimum fireplace opening sizes will vary depending on the faceplate option used.

Dimensions
